As the Common Crane (Grus grus) is
migrating back to their breeding area, it’s time to set up your
own Crane server. Crane is a new open source product
to host data science artifacts: data analysis reports, documentation sites,
packages and libraries, you can read the introduction
blog post here. This
post provides a simple setup to get started with Crane using Docker Compose.

First of all, make sure to
install Docker
and Docker compose.
Next, prepare the docker compose setup:

1. create a new directory called crane and cd into it:

   mkdir crane
   cd crane


2. create some example data:

   mkdir data
   mkdir data/project1
   mkdir data/project2
   echo "This is a demo of crane!" > data/project1/file1.txt
   echo "This is a demo of crane!" > data/project2/index.html


3. create a file docker-compose.yml with the following content:

   services:
   crane:
   image: openanalytics/crane:1.0.0
   ports:
   - "8080:8080"
   volumes:
   - "./data:/srv/crane"
   - "./application.yml:/opt/crane/application.yml"


This simple docker-compose file configures the docker image to use, exposes the
8080 port, mounts the data directory and the application.yml config file.

Setup authentication

Crane can integrate with any Identity Provider (IDP) that supports OpenID
Connect. Therefore it can integrate with all the common IDPs, like (Azure)
Active Directory, Okta, Auth0 etc. For demonstration purposes, we integrate
Crane with GitLab. Before configuring Crane, we need to create an OpenID
Application in GitLab:

1. login into https://gitlab.com
2. in Settings, go to the Applications page: https://gitlab.com/-/user_settings/applications
3. click the Add new application button
4. fill in crane as the Name
5. fill in http://localhost:8080/login/oauth2/code/gitlab as Redirect URI
6. select the openid, profile and email scopes
7. click the Save application button
8. copy the Application ID and Secret from the UI
9. click continue

Now it’s time to create the application.yml configuration file for Crane (in the same directory as the docker-compose.yml file):

app:
openid-issuer-uri: https://gitlab.com
storage-location: /srv/crane/
repositories:
project1:
read-access:
any-authenticated-user: true
project2:
read-access:
any-authenticated-user: true
spring:
security:
oauth2:
client:
registration:
gitlab:
client-id:
client-secret:
scope:
- openid
- email
- profile
provider:
gitlab:
issuer-uri: https://gitlab.com

Make sure to fill in the client-id and client-secret values, by using the
Application ID and Secret values from the GitLab website.
With all configuration ready, you can now start Crane:

docker compose up

After a few seconds, the line Started Crane 1.0.0 will be logged, indicating
Crane is ready to use. Open your favourite web-browser and browse to

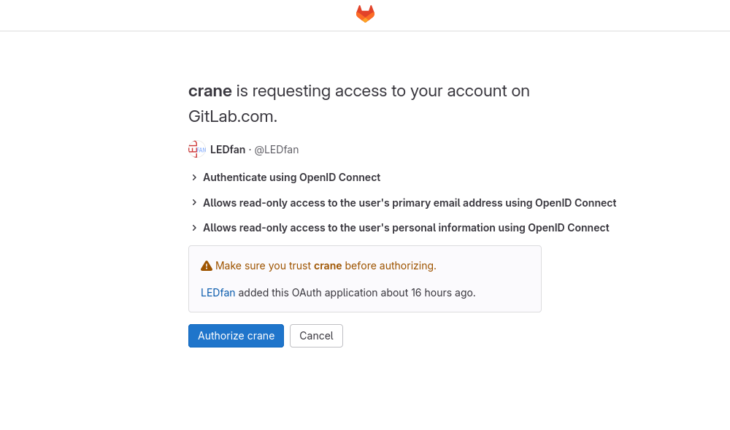

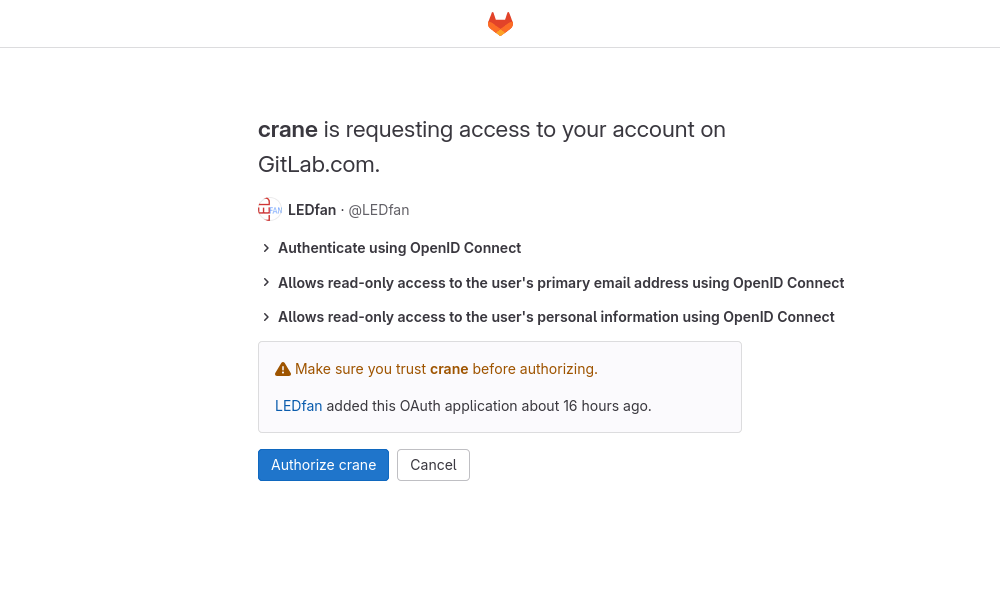

http://localhost:8080. You’ll be redirected to GitLab, asking you whether you
want to login into Crane:

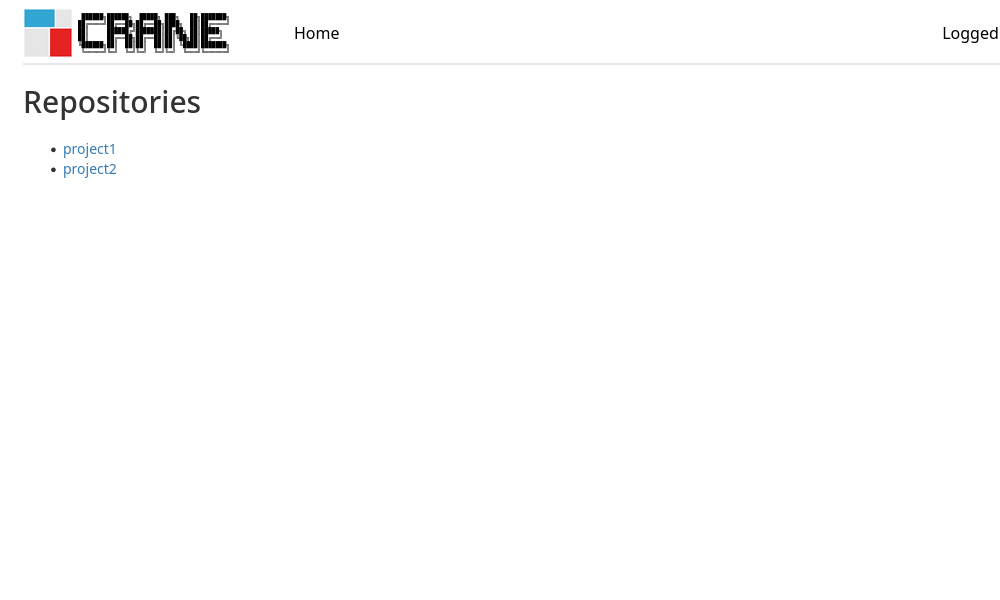

Once you accept it, you are redirected back to Crane and
you’ll see a list of repositories:

Adding authorization

In the current setup, we have two repositories configured (project1 and
project2). Both repositories contain the following authorization
configuration:

read-access:
any-authenticated-user: true

As you may except, this gives read access to any user that can login using
GitLab. If you setup Crane using the IDP of your company, this would mean that
any user within your company can access the repositories.

Let’s restrict the access to project1, by listing the users that can access
the repository. Update the configuration of project1 to:

project1:
read-access:
users:
- MyGitLabUsername
- AnotherGitLabUsername

Make sure to remove the any-authenticated-user property and to list any GitLab
usernames that may access the repository. Next, restart Crane by stopping the
previous command using Ctrl+C and running
docker compose up again.

If you now open http://localhost:8080 you should still see both project1 and
project2. However, if you’d login with a different GitLab account, you’ll only
see project2. You can also specify groups instead of users. This is not
possible when using GitLab, but it’s very common when using the IDP of your
company.

Enabling upload

As a next step, let’s allow specific users to upload files using the following config:

project1:
read-access:
users:
- MyGitLabUsername
- AnotherGitLabUsername
write-access:
users:
- MyGitLabUsername

Once you restart Crane, the user MyGitLabUsername will be able to upload files
using the UI or API. All other users will not have upload permission.

Adding a public repository

Although protecting your data is important, you may also want to host some
public documentation. Crane allows you to easily host this together with all
your private data. As an example, we will host the documentation of
the bayesplot package. Just like many other R
packages, the documentation is built
using pkgdown.

1. first clone the documentation in a new directory (outside the data directory):

   git clone -b gh-pages https://github.com/stan-dev/bayesplot/
   cd bayesplot


2. install the pkgdown and bayesplot package:

   R -q -e "install.packages(c('pkgdown', 'bayesplot'))"


3. generate the pkgdown website:

   R -q -e "pkgdown::build_site()"


4. copy the site to the data directory:

   cp -r * ../data/bayesplot


5. add the repository to the Crane config:

   app:
   # ..
   repositories:
   bayesplot:
   read-access:
   public: true
   # ...


6. restart Crane

The documentation is now available at http://localhost:8080/bayesplot. Note
that you can update the contents of the documentation without restarting Crane.

Conclusion

This blog post explained how to easily get started with Crane. To continue
learning about Crane, head to the documentation, or
check out the support we offer.
